Easy Operation 1900W CW Laser Source Fot Metal Precision Welding

Name: Easy Operation 1900W CW Laser Source Fot Metal Precision Welding
Brand: GZ photonics
Price: 1 USD

Place of Origin : China

Brand Name : GZ photonics

Certification : CE,FCC

MOQ : 1 unit

Packaging Details : wooden box

Payment Terms : T/T

Contact Now

14μm Fundamental-Mode CW Fiber Laser(1900W), adopting the core components designed andunique optical path structure design, realizes 100W~3000W fiber laser single mode output. It is applied to high reflectivity materials such as copper, aluminum and other high-preci sion welding of dissimilar materials, etc. It has excellent beam quality and strong anti-return ability, and has significant advantages in precision cutting and welding.

Model	YSM-1900
Basic Parameters
Average Power (W)	1900
Polarization State	Random
Power Tunability (%)	10-100
Power Stability(%)	±0.5@500W
Central Wavelength (nm)	1080±1
Power Unstability (%)	±2
Modulation Frequency (kHz)	0-50(125kHz Customizable)
OpticalOutputCharacteristics
Beam Quality (BPP, mmXmrad)	≤0.4	≤2	≤4
DiameterOf Fiber Core(μm)	14	50	100
Delivery Cable Length (m)	0-5	0-20	0-20(Customizable)
OperatingMode	CW/Modulated
Electrical Properties
PowerSupply	200-240VAC,50/60Hz
	Single-Phase Three-Wire
Max.Power Consumption (W)	4800
Control Mode	Analog 0-10V (Extemal Control Mode)RS-232/Ethermet Tcp/lp (Internal Control Mode)
Red Light (μW)	>200
OtherFeatures
OperatingAmbientTemperature(°C)	10-40
Relative Humidity (%)	<85
Cooling Method	WaterCooling
Dimensions (WDH, mm)	482.6576103
Weight (kg)	≤20

Product Tags:

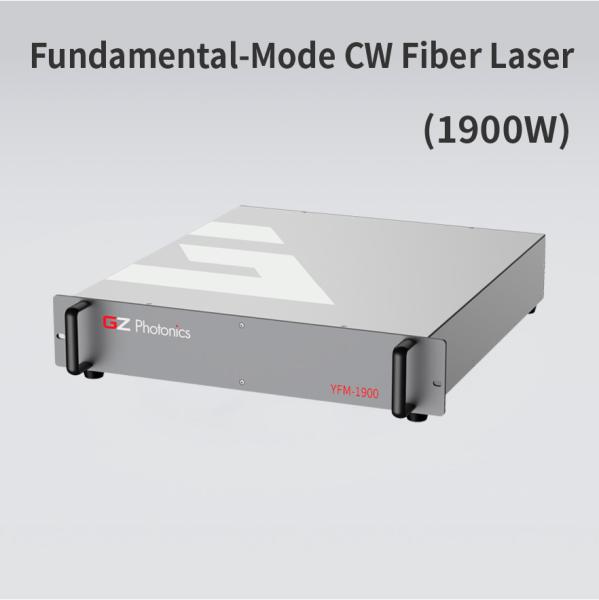

Easy Operation 1900W CW Laser Source Fot Metal Precision Welding Images
